Pixel-Seq Starter Tutorial

Input Data

Since the Pixel-Seq publication provides SGE data only from the mouse olfactory bulb and parabrachial nucleus — neither of which includes the hippocampus — we extract a subregion from the olfactory bulb as the input for this tutorial.

File Format

The Pixel-Seq SGE includes one tab-delimited text file, where each row represents a unique RNA molecule detected within a defined field of view (FOV), with associated genomic and spatial metadata.

TSV file format

1
2
3
4
FOVx  FOVy  xcoord     ycoord     UMIs     SpatialBarcode            MapStrand  Chrom  Start      STARmapping        Counts  geneID              geneName  bioType                 intronRatio
017   005   26691.5    5786.5     TAACGAA  AAGGTTCATACCTACGACTGTTAA  16         1      24613729   150M               1       ENSMUSG00000101111  Gm28437   unprocessed_pseudogene  0.00
016   007   27590.25   4639.0815  TAATATA  AATGGCGCATTTTGCTGTTTAGGC  16         2      39001628   138M2341N12M       1       ENSMUSG00000062997  Rpl35     protein_coding          0.00
018   006   25099.945  5621.8335  AGTTGTA  CTGCATATGTGTCACCTAGGTAGC  16         1      24615767   150M               1       ENSMUSG00000101249  Gm29216   unprocessed_pseudogene  0.00
  • FOVx, FOVy: Field-of-view indices indicating the imaging tile coordinates in the x and y directions.
  • xcoord, ycoord: Spatial coordinates (in microns or pixels).
  • UMIs: Unique molecular identifier (UMI) sequence.
  • SpatialBarcode: Spatial barcode capturing the location and identity.
  • MapStrand: Indicates the strand orientation of the mapped read.
  • Chrom, Start: Chromosome number and start position of the mapped read on the genome.
  • STARmapping: Alignment pattern (CIGAR string) from the STAR aligner indicating how the transcript maps to the genome.
  • Counts: Number of times the UMI/gene combination was observed.
  • geneID, geneName: Ensembl gene ID and gene symbol.
  • bioType: Gene biotype.
  • intronRatio: Fraction of UMI counts assigned to intronic regions.

Data Access

The example data is hosted on Zenedo ().

Follow the commands below to download the example data.

1
2
3
4
work_dir=/path/to/work/directory
cd $work_dir
wget  https://zenodo.org/records/15786632/files/pixelseq_starter.raw.tar.gz
tar --strip-components=1 -zxvf pixelseq_starter.raw.tar.gz

Set Up the Environment

Define paths to all required binaries and resources. Optionally, specify a fixed color map for consistent rendering.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
# ====
# Replace each placeholder with the actual path on your system.
# ====

work_dir=/path/to/work/directory        # path to work directory that contains the downloaded input data
cd $work_dir

# Define paths to required binaries and resources
spatula=/path/to/spatula/binary         # path to spatula executable
punkst=/path/to/punkst/binary           # path to FICTURE2/punkst executable
tippecanoe=/path/to/tippecanoe/binary   # path to tippecanoe executable
pmtiles=/path/to/pmtiles/binary         # path to pmtiles executable
aws=/path/to/aws/cli/binary             # path to AWS CLI binary

# (Optional) Define path to color map.
cmap=/path/to/color/map                 # Path to the fixed color map for rendering. cartloader provides a fixed color map at cartloader/assets/fixed_color_map_256.tsv.

# Number of jobs
n_jobs=10                               # If not specify, the number of jobs defaults to 1.

# Activate the bioconda environment
conda activate ENV_NAME                 # replace BIOENV_NAME with your bioconda environment name

Define data ID and analysis parameters:

1
2
3
4
5
6
7
8
# Unique identifier for your dataset
DATA_ID="pixelseq_hippo"                # change this to reflect your dataset name
PLATFORM="pixel_seq"                    # platform information
SCALE=3.076923                        # scale from coordinate to micrometer

# LDA parameters
train_width=18                           # define LDA training hexagon width (comma-separated if multiple widths are applied)
n_factor=6,12                            # define number of factors in LDA training (comma-separated if multiple n-factor are applied)

How to Define Scaling Factors for Pixel-Seq?

In Pixel-Seq publication:

"Because polonies have varied sizes and shapes, to maximize the feature resolution we developed a base-calling pipeline to determine the major barcode species in each pixel (0.325 * 0.325 mm2) of gel images to construct a spatial barcode map".

Accordingly, we defined scale as 1/0.325 = 3.076923

SGE Format Conversion

Convert the raw input to the unified SGE format. See more details in Reference page.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
cartloader sge_convert \
  --makefn sge_convert.mk \
  --platform ${PLATFORM} \
  --in-csv ./input.tsv.gz \
  --units-per-um ${SCALE} \
  --out-dir ./sge \
  --exclude-feature-regex '^(BLANK|NegCon|NegPrb)' \
  --sge-visual \
  --spatula ${spatula} \
  --n-jobs ${n_jobs}
Parameter Required Type Description
--platform required string Platform (options: "10x_visium_hd", "seqscope", "10x_xenium", "bgi_stereoseq", "cosmx_smi", "vizgen_merscope", "pixel_seq", "generic")
--in-csv required string Path to the input TSV/CSV file
--units-per-um required float Scale to convert coordinates to microns (default: 1.0)
--out-dir required string Output directory for the converted SGE files
--makefn string File name for the generated Makefile (default: sge_convert.mk)
--exclude-feature-regex regex Pattern to exclude control features
--sge-visual flag Enable SGE visualization step (generates diagnostic image) (default: FALSE)
--spatula string Path to the spatula binary (default: spatula)
--n-jobs int Number of parallel jobs for processing (default: 1)

FICTURE Analysis

Compute spatial factors using punkst (FICTURE2 mode). See more details in Reference page.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
cartloader run_ficture2 \
  --makefn run_ficture2.mk \
  --main \
  --in-transcript ./sge/transcripts.unsorted.tsv.gz \
  --in-feature ./sge/feature.clean.tsv.gz \
  --in-minmax ./sge/coordinate_minmax.tsv \
  --cmap-file ${cmap} \
  --exclude-feature-regex '^(mt-.*$|Gm\d+$)' \
  --out-dir ./ficture2 \
  --width ${train_width} \
  --n-factor ${n_factor} \
  --spatula ${spatula} \
  --ficture2 ${punkst} \
  --n-jobs ${n_jobs} \
  --threads ${n_jobs}
Parameter Required Type Description
--main required 1 flag Enable cartloader to run all five steps
--in-transcript required string Path to input transcript-level SGE file
--out-dir required string Path to output directory
--width required int or comma-separated list LDA training hexagon width(s)
--n-factor required int or comma-separated list Number of LDA factors
--makefn string File name for the generated Makefile (default: run_ficture2.mk )
--in-feature string Path to input feature file
--in-minmax string Path to input coordinate min/max file
--cmap-file string Path to color map file
--exclude-feature-regex regex Pattern to exclude features
--spatula string Path to the spatula binary (default: spatula)
--ficture2 string Path to the punkst directory (defaults to punkst repository within submodules directory of cartloader)
--n-jobs int Number of parallel jobs (default: 1)
--threads int Number of threads per job (default: 1)

1: cartloader requires the user to specify at least one action. Available actions includes: --tile to run tiling step; --segment to run segmentation step; --init-lda to run LDA training step; --decode to run decoding step; --summary to run summarization step; --main to run all above five actions.

cartloader Compilation

Generate pmtiles and web-compatible tile directories. See more details in Reference page.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
cartloader run_cartload2 \
  --makefn run_cartload2.mk \
  --fic-dir ./ficture2 \
  --out-dir ./cartload2 \
  --id ${DATA_ID} \
  --spatula ${spatula} \
  --pmtiles ${pmtiles} \
  --tippecanoe ${tippecanoe} \
  --n-jobs ${n_jobs} \
  --threads ${n_jobs}
Parameter Required Type Description
--fic-dir required string Path to the input directory containing FICTURE2 output
--out-dir required string Path to the output directory for PMTiles and web tiles
--id required string Dataset ID used for naming outputs and metadata
--makefn string File name for the generated Makefile (default: run_cartload2.mk)
--spatula string Path to the spatula binary (default: spatula)
--pmtiles string Path to the pmtiles binary (default: pmtiles)
--tippecanoe string Path to the tippecanoe binary (default: tippecanoe)
--n-jobs int Number of parallel jobs (default: 1)
--threads int Number of threads per job (default: 1)

Upload to Data Repository

Choose a data repository to host/share your output

cartloader supports two upload options (AWS and Zenodo) for storing PMTiles of SGE and spatial factors in a data repository.

Choose the one that best suits your needs.

AWS Uploads

Upload the generated cartloader outputs to your designated AWS S3 directory:

1
2
3
4
5
6
7
8
# AWS S3 target location for cartostore
AWS_BUCKET="EXAMPLE_AWS_BUCKET"         # replace EXAMPLE_AWS_BUCKET with your actual S3 bucket name

cartloader upload_aws \
  --in-dir ./cartload2 \
  --s3-dir "s3://${AWS_BUCKET}/${DATA_ID}" \
  --aws ${aws} \
  --n-jobs ${n_jobs}
Parameter Required Type Description
--in-dir required string Path to the input directory containing the cartloader compilation output
--s3-dir required string Path to the target S3 directory for uploading
--aws string Path to the AWS CLI binary
--n-jobs int Number of parallel jobs

Zenodo Uploads

Upload the generated cartloader outputs to your designated Zenodo deposition or a new deposition.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
zenodo_token=/path/to/zenodo/token/file    # replace /path/to/zenodo/token/file by path to your zenodo token file

cartloader upload_zenodo \
  --in-dir ./cartload2 \
  --upload-method catalog \
  --zenodo-token $zenodo_token \
  --create-new-deposition \
  --title  "Yur Title" \
  --creators "Your Name" \
  --description "This is an example description"
Parameter Required Type Description
--in-dir required string Path to the input directory containing the cartloader compilation output
--upload-method required string Method to determine which files to upload. Options: all to upload all files in --in-dir; catalog to upload files listed in a catalog YAML file, user_list to upload files explicitly listed via --in-list
--catalog-yaml string Required if --upload-method catalog. Path to the catalog.yaml file generated in run_cartload2. If absent, will use the catalog.yaml in the input directory specified by --in-dir.
--zenodo-token required string Path to your Zenodo access file
--create-new-deposition flag a new Zenodo deposition will be created.
--title required string Required if --create-new-deposition. Title for the new Zenodo deposition.
--creators required list of str List of creators in "Lastname, Firstname" format.

Output Data

See more details of output at the Reference pages for run_ficture2 and run_cartload2.

Spatial Factor Inference from FICTURE

Below is an example of spatial factor inference results produced by FICTURE using a training width of 18, 12 factors, a fit width of 18, and an anchor resolution of 6.

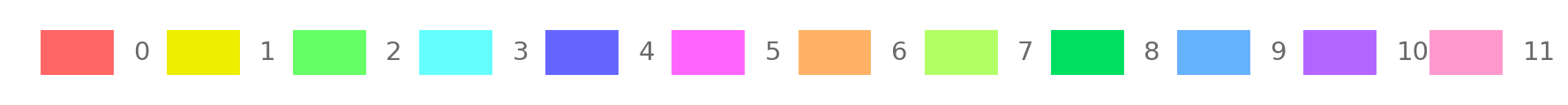

FICTURE cmap

Factor RGB Weight PostUMI TopGene_pval TopGene_fc TopGene_weight
0 255,101,101 0.25229 2026474 Dbi,Cox6c,Cst3,Cox4i1,Rpl37,Rps23,Rps13,Rps19,Vps8,Rpl32,Uqcrb,Rps23-ps1,Rpl41,Atp5md,Rps27a,Rpl39,Mt3,Rpl13,Fth1,Rpl35 C230013L11Rik,Asb5,Arhgap27os1,Pdgfrb,Kcp,Ccl4,Xylt1,Cmpk2,9430091E24Rik,Zfx,Afap1l1,Cobll1,1110046J04Rik,Nde1,Mob1a,Ccl12,Slc14a1,Atp13a4,Armt1,Zfp78 Dbi,Atp5md,Cox6c,Cst3,Tmsb4x,Ndufa4,Cox4i1,Rpl41,Uqcrb,Vps8,Rpl37,Mt3,Atp5mpl,Rps23,Rpl32,Fth1,Rps23-ps1,Cox7a2,CT010467.1,Rps27a
1 237,238,0 0.1761 1414501 Pcp4,Calm2,Itm2b,Snap25,Ddx5,Ss18l2,Gad1,Slc25a3,Hnrnph1,Mdh1,Psma1,Sf3b1,Gpsm1,Aldoa,Grin2a,Ptpro,Focad,Ckb,Hnrnpm,Srsf5 Myo19,Adamts15,Exoc8,Esm1,Snora31,Pcdhb7,Osgin2,Tmem28,Hmgxb4,Pcdhb11,Bod1l,Zfp951,Ppp1r21,Rbm19,Ovgp1,Tmco6,Mroh8,Atp10a,Zbtb6,Fgf16 Pcp4,Calm2,Tmsb4x,Atp5md,Ubb,Ndufa4,Cox7a2,Atp5o,Ckb,Cox4i1,Cox6c,Calm1,Dynll1,Mdh1,Atp5mpl,Itm2b,Ndufb4,Eif1,Snap25,Rpl41
2 101,255,101 0.12776 1026174 Rps25,Pcp4,Rps27,Rps15a,Rpl34,Dynll1,Gas5,Rps24,Rps27rt,Uqcrh,Rps7,Rps14,Rpl36a,Rpl7,Timm8b,Rpl30,Sec61g,Krt10,Atp5l,Ndrg3 Pkp2,Arrdc4,Xlr,Ccdc116,Mchr1,AV039307,A830031A19Rik,Fam183b,Myl2,R3hcc1l,Ikzf2,Birc5,Dok2,Cdc42ep5,Smad4,Frmd8os,Zfp85os,A830073O21Rik,Ccdc177,Rbm43 Pcp4,Rps25,Rps15a,Rps27,Atp5md,Dynll1,Rps24,Rps14,Gas5,Rpl34,Uqcrh,Atp5l,Tmsb4x,Rpl41,Rps23,Rpl37,Rpl36,Rpl37a,Rpl32,Ndufa4
4 101,101,255 0.10851 871555 Cpe,Cck,Ly86,Nmb,Stmn2,Stmn3,Doc2g,Sparcl1,Spp1,Pfn2,Gabra1,Hsp90aa1,Mgst3,Id2,Ptprd,A2ml1,Rab3b,Chgb,Cdhr1,Atp6ap1l Fam111a,1700101I11Rik,Susd5,Olfr110,C230034O21Rik,Glra2,Col9a1,Myom1,Lrrc75b,Hsf4,Dpys,Cd207,Plcl1,Adam19,Sema3d,Kng1,Hs3st4,Samsn1,Pou3f1,1700086P04Rik Ndufa4,Atp5md,Stmn3,CT010467.1,Atp5g1,Cst3,Mgst3,Cox7a2,Ubb,Cpe,Cox4i1,Tmsb4x,Mdh1,Calm1,Cck,Vps8,Mt3,Cox6c,Ly86,Uqcrh
3 101,254,255 0.1012 812851 Ptgds,Hbb-bs,Hba-a2,Hba-a1,S100a5,Gng13,Hbb-bt,Fabp7,Apod,Npy,Tmsb4x,Prdx1,Crip1,Apoe,Mt1,S100a8,Mgp,Atox1,Ptn,Acbd7 Lsp1,Olfr1463,Galnt4,Lsr,Hacd4,Thbs2,Gjb2,Sntb1,Ogn,Car13,Dapl1,S100a8,A930037H05Rik,Slc22a6,Grap,Tagln,Ninj2,Igf2,Mfap5,Zc3hav1l Ptgds,Hbb-bs,Hba-a2,S100a5,Hba-a1,Tmsb4x,Gng13,Fabp7,Dbi,Hbb-bt,Mt1,Rpl41,Cst3,Apoe,Fth1,Prdx1,Mt3,Atp5md,Vps8,Calm1
5 255,101,254 0.09759 783886 Atp5mpl,Uqcrb,Cox7b,Fkbp3,Calb2,Atp5j,Ctsl,Bmerb1,Oaz1,Polr2k,Canx,Ly6g6e,Trh,Ldhb,Vip,Vsnl1,Ndfip1,Nrsn1,Dynlrb1,Gpx4-ps2 2410080I02Rik,Slc24a5,Rapgef3os2,Sycp2,Zfp984,Gpr176,Zfp455,A430018G15Rik,4933412E12Rik,1700047F07Rik,Sowahc,Carns1,Larp1b,Rom1,Slc30a3,Zfp959,Ddx10,Gpr22,Zfp217,Pgm3 Atp5mpl,Uqcrb,Atp5md,Ndufa4,Cst3,S100a5,CT010467.1,Cox7b,Atp5j,Ubb,Cox6c,Rpl41,Uqcr11,Uqcr10,Mt3,Tmsb4x,Atp5o,Ldhb,Cox4i1,Cox7a2
6 255,178,101 0.08203 658867 Igf2bp3,Ogt,Ints6l,Trim9,Mrgbp,Meg3,Tmem29,Pfkp,Clk1,Snhg11,Clk4,Pcp4l1,R3hdm1,Malat1,Atxn7l2,Ckb,Arsb,Matk,Uqcrq,Nptn Thg1l,Lrrc19,BC024063,Pcdhb8,Utp14b,3110053B16Rik,Bloc1s6os,Ccdc142os,Zbtb26,Nfe2l3,Rgs16,Papolg,Zfp747,Wnt10b,C130073E24Rik,Il20ra,Zfp960,Cenpq,Ascc3,Hcfc2 Ndufa4,Uqcrq,Ckb,Atp5md,Cox6c,Meg3,Cox4i1,Atp5mpl,Ubb,Pcp4,Tmsb4x,Snhg11,Calm2,Uqcr10,Mt3,Uqcrb,CT010467.1,Mt1,Uqcrh,Cox7a2
7 178,255,101 0.02197 176451 Psma4,Smim26,Manf,Ankhd1,Gng11,Skp1a,Ndufa12,Arpc5l,Prdx4,Celrr,Snhg1,Nol7,Eif4a2,Dcun1d1,Mrpl57,Zswim6,Utp15,Med19,Psd3,Pot1b Cryba4,Wipf1,Tes3-ps,Pot1b,Rnf225,Celrr,D730044K07Rik,4933424L21Rik,Pigw,Pih1d2,Ccdc190,Sec24d,Pcdhb17,Utp15,Mis12,Asb16,Smad2,Dcun1d1,Cst12,6330549D23Rik Atp5md,Ndufa12,Cox7a2,Rpl31,Ndufb1-ps,Ndufb4,Dynlrb1,Cst3,Cox7c,Fau,Tmsb4x,CT010467.1,Cox7b,Skp1a,Rpl26,Cox6c,Rpl41,Rps24,Slirp,Smim26
8 0,223,95 0.02035 163444 Calm2,Pcp4,Rbbp8,Pcmtd2,Rpl35a,Ak6,Dlx6os1,Immp1l,Top2b,Zfp281,S100a10,Rasa2,Vamp4,Tiam1,Rpn2,Ndufa8,Pak1ip1,Ik,Sft2d3,Psma3 Kirrel2,Slc46a2,Ripk4,Gpr50,9430083B18Rik,Kcnj8,Cdh9,Zfp992,Rbbp8,9230112E08Rik,Znf41-ps,Socs4,Asic3,Plxna4os1,Pdp2,Stat5a,Zfp281,Tfap4,Spdya,Fpgt Pcp4,Calm2,Rpl35a,Tmsb4x,Atp5mpl,S100a10,Ndufa4,Cox6c,Rps8,Rpl41,Ndufa8,Atp5md,Uqcr11,Immp1l,Rpl37a,Cox7a2,Ckb,Ndufs4,Abcb10,Uqcrq
9 101,178,255 0.00875 70293 Brcc3,Tmsb15l,Rbis,Vps13c,Eid1,Tmsb15b2,Dnajb4,Arpp21,Tent2,Rab10os,Mrpl33,Efr3b,Krt12,Uba3,Arhgap5,Magee1,Cdv3,Steap2,Arsg,Polr3d Olfm5,Samd11,Vps13c,Zkscan4,Gabrg1,2310034G01Rik,Efcab11,Qrfpr,A230065N10Rik,Prss35,Arsg,Fam199x,Prim2,Fam163a,Npy5r,Acsl5,Klhl28,Tent2,A330041J22Rik,Sertm1 Rbis,Atp5h,Mrpl33,Tmsb15l,Brcc3,Ndufa11,Ubb,Arpp21,Fth1,Atp5md,Tmsb4x,2610001J05Rik,Ndufa4,Dnaja1,Krt12,Ubl5,Polr2j,Cox6c,Slc25a5,Fcf1
10 178,101,255 0.00327 26268 4930522L14Rik,Ano4,Ccdc82,Ctxn2,Trdn,Pdzd8,Dtnbos,Arhgef26,Ephx2,Itgav,Mgat5,Casp1,Zfp950,Crh,Tm2d1,Zfp637,Trim2,Tmem167,Capza2,Gpr135 5430403G16Rik,Dtnbos,4930522L14Rik,Arhgef26,Usp27x,Trdn,Tbc1d10c,Ccdc82,Zfp51,Pdzd8,Gpr135,Wfdc1,Ephx2,4921504A21Rik,Crh,Pou3f4,Ttll3,1700102H20Rik,P2ry14,Gas1 Ndufs5,Tmem167,Cox5b,Ndufs5-ps,Ndufab1,Tm2d1,Cox6c,Itgav,Zbtb20,Ctxn2,Capza2,Cycs,Trim2,Ano4,Cops5,Selenow,Atp5md,Zfp637,Uqcrb,Zcchc18
11 255,153,204 0.00018 1416 1700019G24Rik,Slc26a7,Tmem132cos,Ggh,Pdgfd,Peli2,Reln,Ddit4l,Ifitm1,Lrrfip1,Gin1,Polr2m,Arsk,Map7,Secisbp2l,Lrrcc1,Neu1,Prdm16,Zfp292,Ubxn7 Tmem132cos,1700019G24Rik,Slc26a7,Pdgfd,Ddit4l,Arsk,Ifitm1,Lrrcc1,Peli2,Ggh,Prdm16,Lrrfip1,Map7,Secisbp2l,Polr2m,Gin1,Zfp292,Ubxn7,Neu1,Reln Reln,Gin1,Ggh,Polr2m,Peli2,Lrrfip1,Slc26a7,1700019G24Rik,Secisbp2l,Gad1,Ifitm1,Map7,Neu1,Selenow,Tmem132cos,Ubl5,Pdgfd,Ddit4l,Penk,Elob

Packed SGE and Spatial Factor Outputs from run_cartload2

The packed SGE data and spatial factor inferences generated by FICTURE are available in PMTile format on Zenodo: DOI:10.5281/zenodo.15824938.

These datasets can also be loaded directly using the following catalog YAML file:
https://zenodo.org/records/15824939/catalog.yaml
