Top Bar

The Top Bar is your primary navigation and control center in CartoScope, providing persistent access to global controls, drawers toggles, settings, and sharing options.

Interface

Top Bar

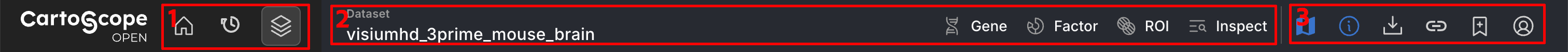

Below is a list of all buttons and components available in the Top Bar.

1. Left Controls

From left to right:

  • Home: Returns you to the Data Catalog or landing page.
  • Restart: Restarts the current session. This will clear all custom layers and selections, and reset the map view and settings to their default states.
  • Layer Toggle: Opens or closes the Layer Drawer sidebar on the left, where you manage visualization layers.

2. Central Controls

From left to right:

  • Session Title: Displays the name or ID of the current session. If it is a multi-sample session, click the edit button to open the Edit Session dialog to control selected datasets, layout, and naming. This dialog is similar to the Set Up Session dialog.
  • Gene: Toggles the Gene Drawer on the right, allowing you to search and visualize specific genes.
  • Factor: Toggles the Factor Drawer, where you can explore spatial factors and cluster-based layers.
  • ROI: Toggles the ROI Drawer, enabling you to create and manage specific areas for analysis.
  • Inspect: Activates the Inspector Drawer. When active, clicking on the map reveals detailed information about that specific location.

3. Right Controls

From left to right:

  • Overview Map Controller: Toggles the visibility of the mini overview map in the bottom-right corner.
  • Help Controller: Toggles Help mode. When enabled, hovering over interface elements will display help tooltips.
  • Export: Opens the export menu to download the current map view as a high-resolution PNG image or PDF document.
  • Share Link: Copies a unique URL to your clipboard that captures the current dataset state, allowing you to share exactly what you are seeing with others.
  • Bookmark: Save the current view state—including scale, layers, and drawer configurations—as a bookmark (requires login). This facilitates sharing specific views with others.
  • Profile: Manage your user account, log in, or log out.

MULTI-SAMPLE SESSION FEATURE

In Multi-Sample Sessions, the Top Bar includes additional persistent controls:

  • Edit Session Title Button: Click the edit icon next to the session title to open the Edit Session dialog.
  • Sample Drawer Button: Toggles the Sample Drawer for custom sample labeling, contrast setup, Chi-squared vs DESeq2 testing, and volcano plot analysis.
  • Grid Layout Editor: Opens the grid layout panel to adjust rows/cols, swap sample slots, or export session layout YAML.
  • External Catalog Tabs: Switch between single dataset exploration tabs (Single Data Tab) and multi-sample catalog tabs (Multi Data Tab).
